Sprinkler Info


safe figures for Garden Micro Sprinklers



Circular pattern (Standard)

Radius (throw)

Flow Rate

Max Distance to next same sprinkler (closer is better)

90º Blue & Black

1.8mt

0.75 Lt/min

1.5mt

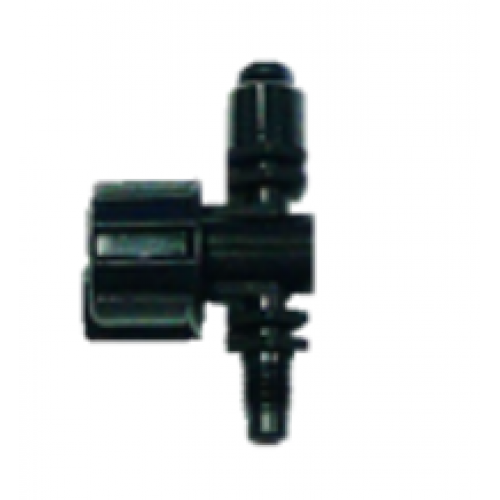

90º Black, adjustable

0mt → 2.0mt

0 → 2.0 Lt/min

1.5mt

180º Green

1.0mt

1.4 Lt/min

1.0mt

180º Blue & Blue

1.5mt

0.75 Lt/min

1.5mt

180º Green & Black

1.8mt

1.2 Lt/min

1.5mt

180º Black, adjustable

0mt → 1.8mt

0 → 2.0 Lt/min

1.5mt

360º Black

1.0mt

1.9 Lt/min

1.0mt

360º Black, adjustable

0mt → 1.2mt

0 → 1.5 Lt/min

1.0mt

360º Blue spinner

2.0mt

0.8 Lt/min

1.5mt

360º Green spinner

2.5mt

1.5 Lt/min

1.5mt

360º Red spinner

2.5mt

2.0 Lt/min

1.5mt







Other

Wetted Area

 Flow Rate

Max Distance to next same sprinkler (closer is better)

360º Mister, Yellow & Black

0.25mt

0.42 Lt/min

not applicable – okay for single plant watering

Narrow strip, Blue & Black

>< pattern

5.0mt x 0.5mt

0.75 Lt/min

1.5mt

Wide strip, Blue

>< pattern

3.6mt x 1.0mt

1.5 Lt/min

1.5mt

Garden Sprinkler note: Plants grow in the way of garden sprinklers, so the further apart you put your sprinklers, the sooner they will be overgrown. A good maximum grid style layout for larger gardens using 180deg 2piece sprinklers (e.g. green & black) in combination with spinners, is 1.5mt x 2mt.

safe figures for RainBird static (non-rotating) adjustable pop-up



Circular pattern (standard)

Nozzle #



Radius (throw)



Flow rate @ 180º
(½ for 90º and double for 360º)



Maximum distance next
‘same nozzled’ sprinkler

(closer is better)

12’

3.2mt

4.5 Lt/min

3.2mt

15’

4.0mt

7.0 Lt/min

4.0mt













Strip Pattern

Nozzle #



Wetted Area



Flow rate



Max Distance to next same sprinkler (closer is better)

Left Corner

4.0mt x 1.0mt

2.0 Lt/min

4.0mt

Right Corner

4.0mt x 1.0mt

2.0 Lt/min

4.0mt

End Strip

4.0mt x 1.0mt

2.3 Lt/min

4.0mt

Centre Strip >< pattern

8.0mt x 1.0mt

4.5 Lt/min

4.0mt

Side Strip

8.0mt x 1.0mt

4.5 Lt/min

4.0mt




safe figures for RainBird 3500 rotating adjustable pop-up

(comes with complete nozzle set)

Nozzle #

Radius (throw)

Flow rate

Maximum distance to next
‘same nozzled’ sprinkler

(closer is better)

0.75

4.4mt

3.0 Lt/min

4.4mt

1.0

5.4mt

4.0 Lt/min

5.4mt

1.5

6.0mt

6.0 Lt/min

6.0mt

2.0

7.0mt

8.0 Lt/min

7.0mt

3.0

8.0mt (becoming too thirsty

for this distance)

12.0 Lt/min

8.0mt

4.0

8.6mt (becoming too thirsty

for standard residential)

16.0 Lt/min

8.6mt


safe figures for RainBird 5000 rotating adjustable pop-up

(comes with complete nozzle set)

Nozzle #

Radius (throw)

Flow rate

Maximum distance to next
‘same nozzled’ sprinkler

(closer is better)

1.0 Low angle

7.5mt

4.0 Lt/min

7.5mt

1.5 Standard angle

8.8mt

6.0 Lt/min

8.8mt

2.0 Standard angle

9.3mt

8.0 Lt/min

9.3mt

2.5 Standard angle

9.6mt

10.0 Lt/min

9.6mt

3.0 Standard angle

10.0mt

12.0 Lt/min

10.0mt

4.0 Standard angle

10.8mt (becoming too thirsty

for standard residential)

16.0 Lt/min

10.8mt

Remainder: Usually too thirsty for standard residential multiple sprinkler use
